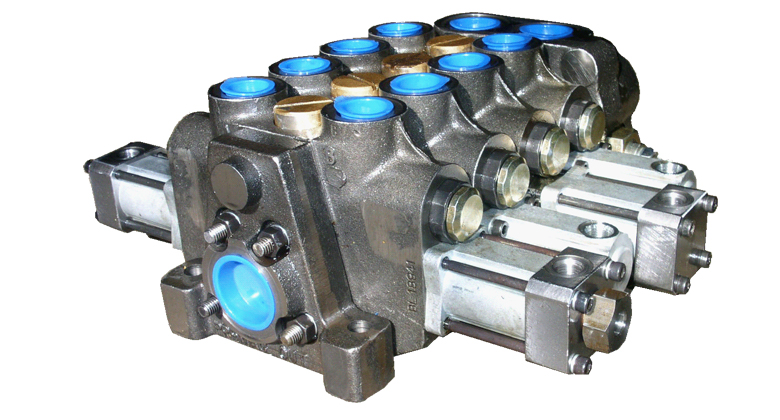

Premac has been manufacturing the V150 directional control valve range locally in South Africa
since 1989 and has proven its reliability, offering an extensive range of combinations
and options to suit every requirement.
These valves are manufactured to the highest specifications using the best material available to
ensure a lasting, good quality product.
SPECIFICATIONS:
| Capacity: | Nominal Rating 150 litres/min |
| Other part number(s): | V40 |
| Continuous Working Pressure: | 210 Bar |
| Number of Spools Available (max): | 9 Sections |
Operation/Spool Options:
3 Way 3 Position
4 Way 3 Position
4 Way 4 Position Float
4 Way 4 Position Regenerative
4 Way 3 Position Free Flow (Motor)
4 Way 3 Position
4 Way 4 Position Float
4 Way 4 Position Regenerative
4 Way 3 Position Free Flow (Motor)
Actuator:
Spring Centered to Neutral
Hydraulic Remote
3 Position Detent
2 Position Detent
Hydraulic Remote
3 Position Detent
2 Position Detent
Main Relief: Differential Pressure Poppet
 |
 |
 |
| Inlet Cover | Work Section | Outlet Cover |
| SAE 16 or 20 | SAE 12 or 16 | SAE 20 |
Miscellaneous:
Power Beyond, Open Center, Closed Center, Conversion Plug, Load Holding Check, Mid-inlet, Work Port Relief, Anti-Cavitation Check.
